ISUZU Chassis 3-4 ton's Winch Road Wrecker Truck with 4200×2300mm Flatbed

Product Categories
Shanghai Jindun special vehicle Equipment Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

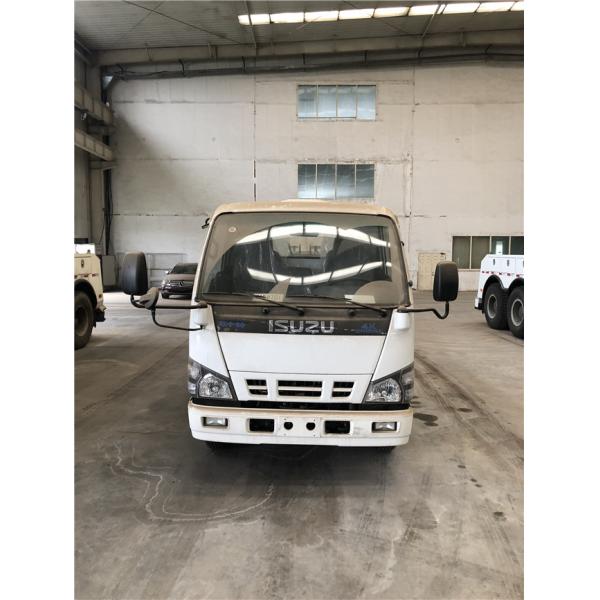

ISUZU Chassis 3-4 ton's Winch Road Wrecker Truck with 4200×2300mm Flatbed

  • 1
  • 2

Brand Name : YD

Model Number : PF-1010

Certification : ISO9001:2008, CE

Place of Origin : CHINA

MOQ : 1 SET

Price : Factory price, Negotiable

Payment Terms : T/T, L/C, D/A, D/P, Western Union, MoneyGram

Supply Ability : 50 SETS PER MONTH

Delivery Time : 30 working days

Packaging Details : standard package in container

Flatbed dimension : 4200×2300 mm

Wheel base : 3300 mm

Max speed : 90km/h

Dimension : 5997×2300×2200 mm

Emission standard : Euro 4

Product name : Isuzu chassis road wrecker truck

Contact Now

ISUZU Chassis 3-4 ton's Winch Road Wrecker Truck with 4200×2300mm Flatbed

Tow truck is also called tow truck wrecker, road wrecker,truck wrecker,road recovery truck,recovery truck vehicle,rotator wrecker,flatbed wrecker,flat bed tow truck,etc.

Main Specification
(1). Capacity: 2-10 ton flatbed wrecker,11-30 ton rotator wrekcer.
(2). Steering wheel: both left and right hand drive,meet the needs of different countries.
(3). Emission standard: option Euro 1,Euro 2,Euro 3,Euro 4,Euro 5 tow truck wrecker
(4). Truck chassis: option japan and china brand

Specification

Complete Vehicle Parameter
Vehicle I S UZ U wrecker tow truck
Overall dimension (mm) 5997×2300×2200
Flatbed dimension (mm) 4200×2300
Curb weight (kg) Appro×3300
Flatbed towing (kg) Appro×3000
Under wheel lift (kg) Appro×3000
Wheel base (mm) 3300
Max speed (km/h) 90
Standard configuration 1) Flatbed weighing capacity 3 ton,widely used in transporting cars, vans, SUV, mini vans.
2) Hydraulic control flatbed extend and rollback.
3) A 4 ton winch, 25m steel rope.
4) Hydraulic tail plate,thickness 8mm,length 1m.
5) Rear carriage arm towing capacity 2 ton, hydraulic control lifting.
6) Rear tail lights LED,both sides electronic lights.
7) 2pcs auxiliary wheels
8) 4pcs bunding belt
Chassis Parameter
Cabin Single row cabin,air conditioner, cabin roof warning light, 2 passengers
Traction system 4×2
Engine

Brand : IS UZ U
Model : 4JB1CN, 98hp
Type : diesel, 4 cylinder, turbocharged, inter-cooled.
Displacement : 2999ml
Emission standard : Euro 4
Transmission 5 forward,1 reverse, manual operated
Tire model 7.00-16
No.of tires 6pcs, and a spare tire

ISUZU Chassis 3-4 ton's Winch Road Wrecker Truck with 4200×2300mm Flatbed
